SPAR Ontologies - DataCite

DataCite Ontology (DataCite)

URL: http://purl.org/spar/datacite (alternative at w3id.org)
DOI: 10.25504/FAIRsharing.c06f1e
Documentation: http://purl.org/spar/datacite.html
Source: http://purl.org/spar/datacite.xml (RDF/XML)
http://purl.org/spar/datacite.ttl (Turtle)
http://purl.org/spar/datacite.nt (N-triples)
http://purl.org/spar/datacite.json (JSON-LD)
Repository: https://github.com/sparontologies/datacite

The DataCite Ontology (or simply DataCite) is an ontology written in OWL 2 DL to enable the metadata properties of the DataCite Metadata Schema version 3.1 to be described in RDF.

The main intent of the DataCite Ontology (shown in the following diagram) is to provide a flexible mechanism to define identifier for bibliographic resources (e.g., papers and datasets) and related entities (e.g., authors). To this end, we use the object property datacite:hasIdentifier that has as its object a member of the class datacite:Identifier or of one of its two sub-classes, datacite:ResourceIdentifier or datacite:AgentIdentifier, while the latter one is sub-classed by three additional classes, i.e., datacite:PersonalIdentifier, datacite:OrganizationIdentifier, and datacite:FunderIdentifier.

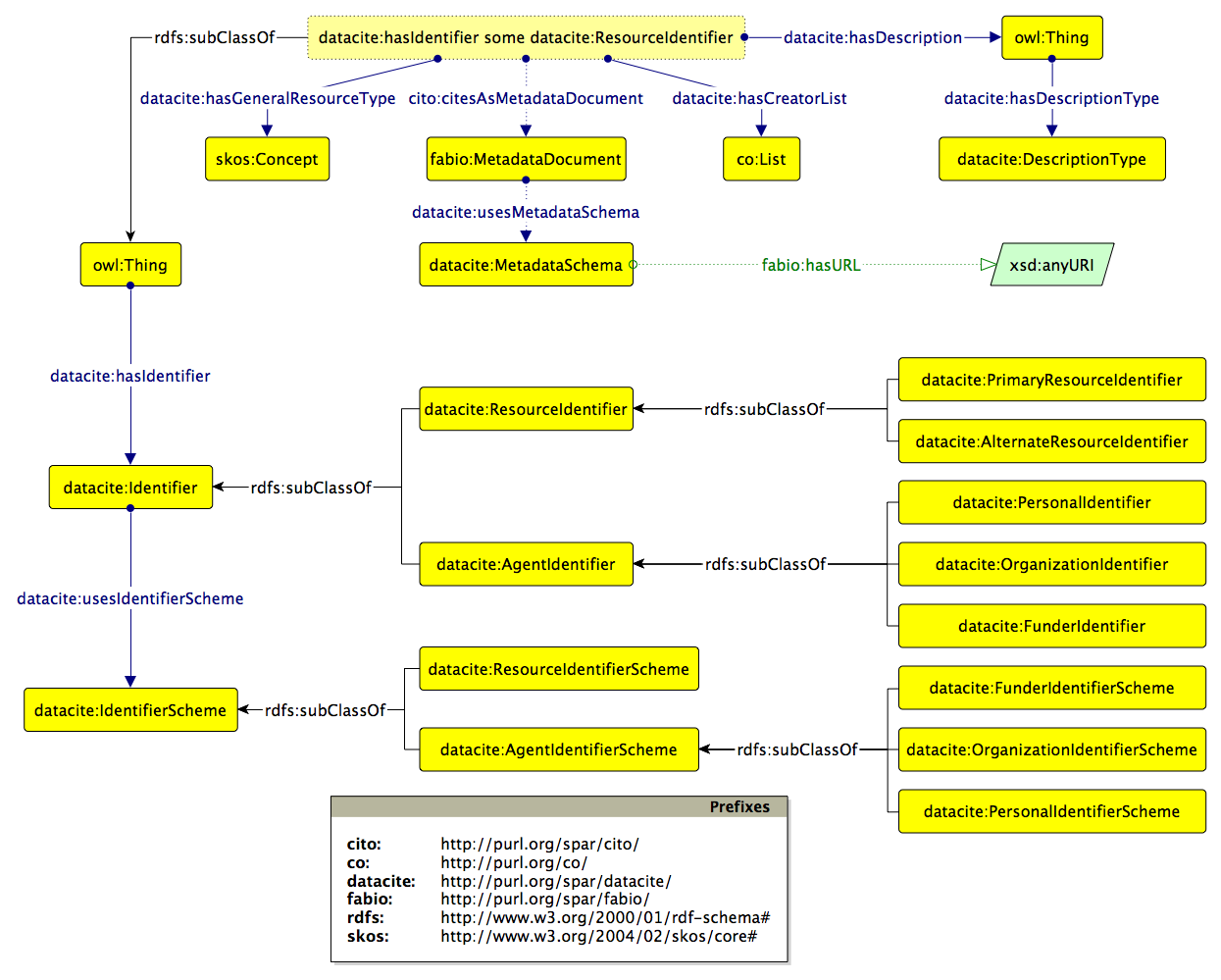

A diagram of the main classes and properties of the DataCite Ontology.

The exact nature of the identifier is then defined using the second DataCite object property datacite:usesIdentifierScheme that has as its object the class datacite:IdentifierScheme or one of its two sub-classes: datacite:ResourceIdentifierScheme and datacite:AgentIdentifierScheme, while the latter one is sub-classed by three additional classes, i.e., datacite:PersonalIdentifierScheme, datacite:OrganizationIdentifierScheme, and , datacite:FunderIdentifierScheme.

This provides a robust method for defining identifiers, since each specific identifier is defined as an individual member of its appropriate identifier scheme class. Of course, existing identifier schemes have been already defined within the ontology. For instance:

datacite:doi is an individual member of the class datacite:ResourceIdentifierScheme specifying a DataCite Digital Object Identifier;
datacite:orcid is an individual member of the class datacite:PersonalIdentifierScheme specifying an Open Researcher and Contributor Identifier;
datacite:fundref is an individual member of the class datacite:FunderIdentifierScheme specifying a FundRef Funder Identifier.

As need arises, new identifiers can be added later as new members of each class, without having to modify the structure of the DataCite Ontology. In addition, three members, i.e., datacite:local-resource-identifier-scheme, datacite:local-personal-identifier-scheme, datacite:local-organization-identifier-scheme and datacite:local-funder-identifier-scheme, have been already added to permit the use of local identifiers.

The class datacite:DescriptionType, and the object properties datacite:hasDescription and datacite:hasDescriptionType have also been defined in order to link an entity to another item representing an entity description of a particular type. This is defined using the property datacite:hasDescriptionType, which must have as its object one of the members of the class datacite:DescriptionType, i.e., datacite:abstract, datacite:methods, datacite:other, datacite:series-information and datacite:table-of-content. In this way it is possible to associate written documents (e.g. journal articles or 'data articles') as descriptions of datasets.

Finally, it is also possible to provide a link between a resource, such as a dataset, and the document describing its metadata by means of CiTO, using the property cito:citesAsMetadataDocument, and FaBiO, by means of the class fabio:MetadataDocument. In addition to these entities, the DataCite Ontology provides appropriate classes (i.e., datacite:MetadataScheme) and properties (i.e., datacite:hasMetadataScheme) to specify the particular scheme followed for creating the resource metadata exemplified in the metadata document.

Examples of use of DataCite

Datasets' DOIs and authors' ORCIDs
Conversion of a DataCite XML document into RDF

Datasets' DOIs and authors' ORCIDs

DataCite allows one to associate identifiers to a bibliographic entity (e.g., a dataset, a person, an article) specifying their exact nature by means of the object property datacite:usesIdentifierScheme. In addition, it is also possible, through the object property datacite:hasDescription, to link an entity to another item representing an entity description of a particular type. This is defined using the property datacite:hasDescriptionType, which must have as its object one of the members of the class datacite:DescriptionType, i.e., datacite:abstract, datacite:other, datacite:series-information, datacite:methods, and datacite:table-of-content. In this way it is possible to associate written documents (e.g., journal articles) as descriptions of datasets.

@prefix : <http://www.sparontologies.net/example/> .
@prefix datacite: <http://purl.org/spar/datacite/> .
@prefix dcterms: <http://purl.org/dc/terms/> .
@prefix fabio: <http://purl.org/spar/fabio/> .
@prefix foaf: <http://xmlns.com/foaf/0.1/> .
@prefix literal: <http://www.essepuntato.it/2010/06/literalreification/> .
@prefix orcid: <http://orcid.org/> .

<http://dx.doi.org/10.5061/dryad.15v26> a fabio:Dataset ;
    datacite:hasIdentifier :dataset-doi ;
    dcterms:creator
        orcid:0000-0002-5159-9717 ,
        orcid:0000-0002-7811-3617 ;
    datacite:hasDescription
        <http://dx.doi.org/10.1098/rsbl.2015.0486> .

<http://dx.doi.org/10.1098/rsbl.2015.0486>
    a fabio:JournalArticle ;
    datacite:hasIdentifier :paper-doi ;
    dcterms:creator
        orcid:0000-0002-5159-9717 ,
        orcid:0000-0002-7811-3617 ;
    datacite:hasDescriptionType datacite:other .

:paper-doi a datacite:PrimaryResourceIdentifier ;
    literal:hasLiteralValue "10.1098/rsbl.2015.0486" ;
    datacite:usesIdentifierScheme datacite:doi .

:dataset-doi a datacite:PrimaryResourceIdentifier ;
    literal:hasLiteralValue "10.5061/dryad.mq8r2" ;
    datacite:usesIdentifierScheme datacite:doi .

orcid:0000-0002-5159-9717 a foaf:Person ;
    foaf:name "Nidhi Seethapathi" ;
    datacite:hasIdentifier :seethapathi-orcid .

:seethapathi-orcid a datacite:PersonalIdentifier ;
    literal:hasLiteralValue "0000-0002-5159-9717" ;
    datacite:usesIdentifierScheme datacite:orcid .

orcid:0000-0002-7811-3617 a foaf:Person ;
    foaf:name "Manoj Srinivasan" ;
    datacite:hasIdentifier :srinivasan-orcid .

:srinivasan-orcid a datacite:PersonalIdentifier ;
    literal:hasLiteralValue "0000-0002-7811-3617" ;
    datacite:usesIdentifierScheme datacite:orcid .

Please cite the source above with the following reference:

Peroni, Silvio (2015): Example of use of DataCite #1. figshare. http://dx.doi.org/10.6084/m9.figshare.1554708

Conversion of a DataCite XML document into RDF

This Turtle file is the RDF converted version of the exemplar DataCite XML document available at http://schema.datacite.org/meta/kernel-3.1/example/datacite-example-full-v3.1.xml. The conversion has been made by taking into account the guidelines available at the following document:

Peroni, S., Shotton, D., Ashton, J., Barton, A. J., Gramsbergen, E., Jacquemot, M.-C. (2016). DataCite2RDF: Mapping DataCite Metadata Schema 3.1 Terms to RDF. Version 3.2. http://dx.doi.org/10.6084/m9.figshare.2075356

@prefix : <http://schema.datacite.org/meta/kernel-3.1/example/> .
@prefix cito: <http://purl.org/spar/cito/> .
@prefix datacite: <http://purl.org/spar/datacite/> .
@prefix dcmitype: <http://purl.org/dc/dcmitype/> .
@prefix dcterms: <http://purl.org/dc/terms/> .
@prefix fabio: <http://purl.org/spar/fabio/> .
@prefix foaf: <http://xmlns.com/foaf/0.1/> .
@prefix frapo: <http://purl.org/cerif/frapo/> .
@prefix geo: <http://www.opengis.net/ont/geosparql#> .
@prefix literal: <http://www.essepuntato.it/2010/06/literalreification/> .
@prefix prism: <http://prismstandard.org/namespaces/basic/2.0/> .
@prefix pro: <http://purl.org/spar/pro/> .
@prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> .
@prefix scoro: <http://purl.org/spar/scoro/> .
@prefix sf: <http://www.opengis.net/ont/sf#> .
@prefix skos: <http://www.w3.org/2004/02/skos/core#> .
@prefix xsd: <http://www.w3.org/2001/XMLSchema#> .

:datacite-example-full-v3.1
    datacite:hasIdentifier
        :datacite-example-full-v3.1-primary-id ,
        :datacite-example-full-v3.1-alternate-id ;
    dcterms:creator :elisabeth-miller ;
    dcterms:title "Full DataCite XML Example"@en-us ;
    fabio:hasSubtitle "Demonstration of DataCite Properties."@en-us ;
    dcterms:publisher :datacite ;
    fabio:hasPublicationYear "2014"^^xsd:gYear ;
    dcterms:subject :computer-science ;
    dcterms:contributor :joan-starr ;
    dcterms:modified "2014-10-17"^^xsd:date ;
    dcterms:language :en-us ;
    a fabio:DataFile ;
    datacite:hasGeneralResourceType dcmitype:Software ;
    cito:citesAsMetadataDocument
    	:datacite-example-full-v3.1-metadata-document ;
    cito:isReviewedBy :reviewing-document ;
    dcterms:extent :datacite-example-full-v3.1-size ;
    dcterms:format <https://w3id.org/spar/mediatype/application/xml> ;
    prism:versionIdentifier "3.1" ;
    dcterms:rights :datacite-example-full-v3.1-rights ;
    datacite:hasDescription :datacite-example-full-v3.1-abstract ;
    dcterms:spatial :atlantic-ocean .

:datacite-example-full-v3.1-primary-id
	a datacite:PrimaryResourceIdentifier ;
    datacite:usesIdentifierScheme datacite:doi ;
    literal:hasLiteralValue "10.5072/example-full" .

:datacite-example-full-v3.1-alternate-id
	a datacite:AlternateResourceIdentifier ;
    datacite:usesIdentifierScheme datacite:url ;
    literal:hasLiteralValue
    	"http://schema.datacite.org/schema/meta/kernel-3.1/example/datacite-example-full-v3.1.xml" .

:elisabeth-miller a foaf:Person ;
    foaf:name "Miller, Elizabeth" ;
    datacite:hasIdentifier :elisabeth-miller-orcid ;
    pro:holdsRoleInTime :elisabeth-miller-affiliation .

:elisabeth-miller-orcid a datacite:PersonalIdentifier ;
    datacite:usesIdentifierScheme datacite:orcid ;
    literal:hasLiteralValue "0000-0001-5000-0007" .

:elisabeth-miller-affiliation a pro:RoleInTime ;
    pro:withRole scoro:affiliate ;
    pro:relatesToOrganization :datacite ;
    pro:relatesToEntity :datacite-example-full-v3.1 .

:datacite a foaf:Organization ;
    foaf:name "DataCite" .

:computer-science a skos:Concept ;
    skos:prefLabel "000 computer science"@en-us ;
    skos:inScheme <http://dewey.info/> .

 :joan-starr a foaf:Person ;
    foaf:name "Starr, Joan" ;
    datacite:hasIdentifier :joan-starr-orcid ;
    pro:holdsRoleInTime
        :joan-starr-project-leader ,
        :joan-starr-affiliation .

:joan-starr-orcid a datacite:PersonalIdentifier ;
    datacite:usesIdentifierScheme datacite:orcid ;
    literal:hasLiteralValue "0000-0001-5000-0007" .

 :joan-starr-project-leader a pro:RoleInTime ;
    pro:withRole scoro:project-leader ;
    pro:relatesToEntity :datacite-example-full-v3.1 .

:joan-starr-affiliation a pro:RoleInTime ;
    pro:withRole scoro:affiliate ;
    pro:relatesToOrganization :california-digital-library ;
    pro:relatesToEntity :datacite-example-full-v3.1 .

:california-digital-library a foaf:Organization ;
    foaf:name "California Digital Library" .

:en-us a dcterms:LinguisticSystem ;
    dcterms:description "en-us"^^dcterms:RFC5646 .

:datacite-example-full-v3.1-metadata-document a fabio:MetadataDocument ;
    datacite:hasIdentifier :datacite-example-full-v3.1-metadata-document-id ;
    datacite:usesMetadataScheme :citeproc-json .

:datacite-example-full-v3.1-metadata-document-id a datacite:ResourceIdentifier ;
    datacite:usesIdentifierScheme datacite:url ;
    literal:hasLiteralValue "http://data.datacite.org/application/citeproc+json/10.5072/example-full" .

:citeproc-json a datacite:MetadataScheme ;
    fabio:hasURL
    	"https://github.com/citation-style-language/schema/raw/master/csl-data.json"^^xsd:anyURI .

:reviewing-document
    datacite:hasIdentifier :reviewing-document-id .

:reviewing-document-id a datacite:ResourceIdentifier ;
    datacite:usesIdentifierScheme datacite:arxiv ;
    literal:hasLiteralValue "arXiv:0706.0001" .

:datacite-example-full-v3.1-size
	a dcterms:SizeOrDuration ;
    rdf:value "3KB" .

:datacite-example-full-v3.1-rights
	a dcterms:RightsStatement ;
    literal:hasLiteralValue "CC0 1.0 Universal" ;
    fabio:hasURL
    	"http://creativecommons.org/publicdomain/zero/1.0/"^^xsd:anyURI .

:datacite-example-full-v3.1-abstract
    datacite:hasDescriptionType datacite:abstract ;
    literal:hasLiteralValue
    	"XML example of all DataCite Metadata Schema v3.1 properties." .

:atlantic-ocean a geo:Feature;
    geo:hasGeometry
        :atlantic-ocean-lat-long ,
        :atlantic-ocean-box ;
    frapo:hasLocation "Atlantic Ocean" .

:atlantic-ocean-lat-long a sf:Point ;
    geo:asWKT "POINT(31.233 -67.302)"^^geo:wktLiteral .

:atlantic-ocean-box a sf:Polygon ;
    geo:asWKT
    	"POLYGON(41.090 -71.032, 41.090 -68.211, 42.893 -68.211, 42.893 -71.032, 41.090 -71.032)"^^geo:wktLiteral .

Please cite the source above with the following reference:

Peroni, Silvio (2016): Example of use of DataCite #2. figshare. https://dx.doi.org/10.6084/m9.figshare.2075353
